Alignment

align(seq, opts) resamples a TimeSeries onto a Sequence grid, producing one Interval-keyed event per grid point. The value at each grid point is computed by sampling the source — either holding the most recent source value or interpolating between the two nearest.

This is the right operator when the question is "what was the value at this grid point?" — chart sampling, fixed-cadence exports, regularising irregular telemetry. For "what's the rollup of every event inside this bucket?", reach for Aggregation instead.

Mental model

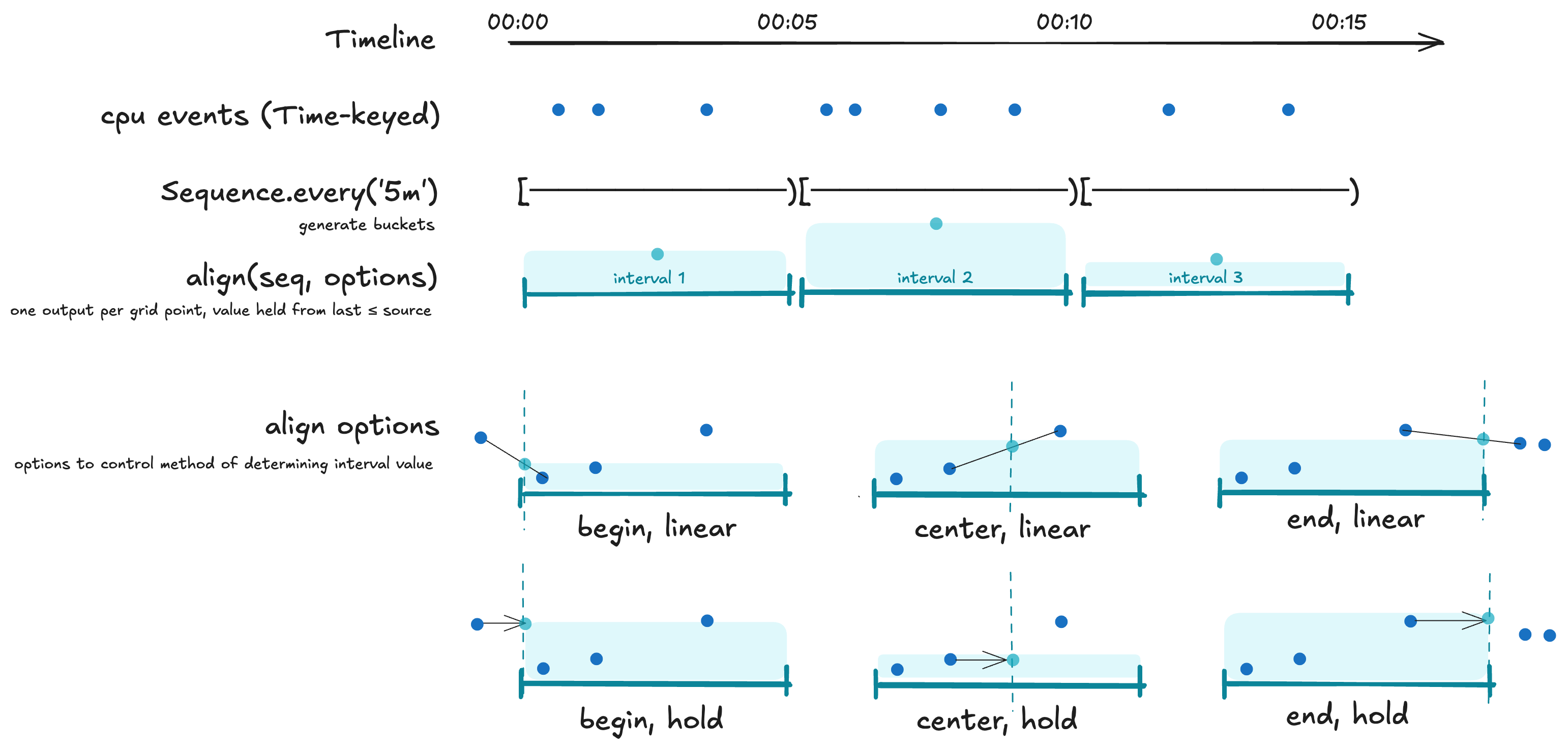

The grid splits time into steps — the regions between the orange lines. sample picks where in each step to read: its begin, center, or end. At that read-line, hold takes the previous sample (to its left); linear interpolates the two samples around it. The teal dots are the real align output there; the faint lines are the construction. (See @pond-ts/charts for how the chart is built.)

For each grid point, align picks a single source value through two settings: sample (where inside the grid step to read) and method (how to derive the value at that point).

TypeScript

import { Sequence, TimeSeries } from 'pond-ts';

const cpu = TimeSeries.fromJSON({
  name: 'cpu',
  schema: [
    { name: 'time', kind: 'time' },
    { name: 'cpu', kind: 'number' },
  ] as const,
  rows: [
    ['2025-01-01T00:00:00Z', 0.31],
    ['2025-01-01T00:00:30Z', 0.44],
    ['2025-01-01T00:01:30Z', 0.48],
  ],
});

const aligned = cpu.align(Sequence.every('1m'), {
  method: 'hold',
  sample: 'begin',
});
// one row per minute on the source's range, value held from
// the most recent source ≤ the grid point.

Rust

use pond_rs::{Align, AlignMethod, At, Column, Sequence, TimeSeries, parse_time};

fn main() -> Result<(), pond_rs::PondError> {
    let times = [
        "2025-01-01T00:00:00Z",
        "2025-01-01T00:00:30Z",
        "2025-01-01T00:01:30Z",
    ]
    .iter()
    .map(|t| parse_time(t))
    .collect::<Result<Vec<_>, _>>()?;
    let cpu = TimeSeries::new(
        "cpu",
        times,
        vec![Column::required("cpu", vec![0.31, 0.44, 0.48])],
    )?;

    let aligned = cpu.align(
        &Sequence::every("1m")?,
        Align {
            method: AlignMethod::Hold,
            sample: At::Begin,
            range: None, // the series' own range
        },
    )?;
    // One row per minute, holding the latest reading at or before it.
    let got: Vec<_> = aligned.column("cpu")?.numbers()?.iter().collect();
    assert_eq!(got, [Some(0.31), Some(0.44)]);

    // Linear: a straight line between the readings either side.
    let linear = Align {
        method: AlignMethod::Linear,
        ..Align::default()
    };
    let lined = cpu.align(&Sequence::every("1m")?, linear)?;
    let got: Vec<_> = lined.column("cpu")?.numbers()?.iter().collect();
    assert_eq!(got, [Some(0.31), Some(0.45999999999999996)]);
    Ok(())
}

Align's Default is pond-ts's default (hold, sampled at the start, over the series' own range), so set only what you change: Align { method: AlignMethod::Linear, ..Align::default() }.

Parameters

Option	Type	Default	Effect
method	'hold' | 'linear'	'hold'	How to derive the value at the sample point
sample	'begin' | 'center' | 'end'	'begin'	Where inside each grid step to read
range	TimeRange	source extent	Pin the output range explicitly

method

• 'hold' — carry the most recent source value at or before the sample point. Output is undefined for grid points before the first source event. Works on any column kind.
• 'linear' — interpolate between the two source values surrounding the sample point. Numeric columns only; throws on TimeRange- or Interval-keyed sources, falls back to 'hold' for non-numeric columns.

sample

• 'begin' — read at the grid step's start (the interval's inclusive begin boundary).
• 'center' — read at the grid step's midpoint.
• 'end' — read at the grid step's exclusive end (= the start of the next step).

The sample point determines which source events are "before" or "after" the grid point — hold reads the most recent source ≤ the sample point; linear interpolates across it.

range

TypeScript

cpu.align(Sequence.every('5s'), {
  method: 'hold',
  sample: 'begin',
  range: new TimeRange({ start: 0, end: 60_000 }),
});

Rust

use pond_rs::{Align, Column, Sequence, TimeSeries};

fn main() -> Result<(), pond_rs::PondError> {
    let cpu = TimeSeries::new(
        "cpu",
        vec![10_000, 22_000],
        vec![Column::required("cpu", vec![1.0, 2.0])],
    )?;

    // Every 5 s from 0 to 60 s, both ends included.
    let padded = cpu.align(
        &Sequence::every("5s")?,
        Align {
            range: Some((0, 60_000)),
            ..Align::default()
        },
    )?;
    assert_eq!(padded.len(), 13);
    let cpu = padded.column("cpu")?.numbers()?;
    assert_eq!(cpu.get(0), None); // before the first reading
    assert_eq!(cpu.get(2), Some(1.0)); // 10 s
    assert_eq!(cpu.get(12), Some(2.0)); // 60 s, held from 22 s
    Ok(())
}

range is a pair of epoch milliseconds, Some((begin, end)), rather than a TimeRange. A grid point counts when its sample point falls in it, both ends included.

Pins the output range explicitly. Default is the source's own extent. Use range when you want a uniform grid over a specific window even if the source doesn't fill it — the output schema is the same, just padded with undefineds outside the source range (or the most recent value, depending on method).

Output schema

The output is an Interval-keyed TimeSeries<S> — same column names and types as the source. Each row is one grid point.

TypeScript

aligned.schema[0].kind; // 'interval'
aligned.at(0)?.key(); // Interval — start = grid begin, end = grid end
aligned.at(0)?.get('cpu'); // number | undefined

Rust

use pond_rs::{Align, Column, Label, Sequence, TimeSeries};

fn main() -> Result<(), pond_rs::PondError> {
    let cpu = TimeSeries::new(
        "cpu",
        vec![0, 30_000, 90_000],
        vec![Column::required("cpu", vec![0.31, 0.44, 0.48])],
    )?;
    let aligned = cpu.align(&Sequence::every("1m")?, Align::default())?;

    assert_eq!(aligned.key_name(), "interval");
    let key = aligned.at(0).unwrap().key(); // start = grid begin, end = grid end
    assert_eq!((key.begin(), key.end()), (0, 60_000));
    assert_eq!(key.label(), Some(&Label::from(0.0))); // labelled by its start
    assert_eq!(aligned.at(0).unwrap().number("cpu")?, Some(0.31));
    Ok(())
}

The grid is half-open [begin, end) — events at exactly the boundary belong to the later grid step.

Time-keyed output for chart libraries

align returns interval-keyed events (consistent with aggregate). Most chart libraries want point-keyed output — chain .asTime({ at }) to convert:

TypeScript

const points = cpu
  .align(Sequence.every('5m'), { method: 'hold', sample: 'end' })
  .asTime({ at: 'end' });
// points.at(0)?.key() is now a Time at the interval's end.

Rust

use pond_rs::{Align, At, Column, Sequence, TimeSeries};

fn main() -> Result<(), pond_rs::PondError> {
    let min = 60_000;
    let cpu = TimeSeries::new(
        "cpu",
        vec![0, 4 * min, 7 * min, 12 * min, 16 * min],
        vec![Column::required("cpu", vec![0.1, 0.2, 0.3, 0.4, 0.5])],
    )?;

    let points = cpu
        .align(
            &Sequence::every("5m")?,
            Align {
                sample: At::End,
                ..Align::default()
            },
        )?
        .as_time(At::End)?;
    assert_eq!(points.key_name(), "time");
    assert_eq!(points.key().begin(), &[5 * min, 10 * min, 15 * min]);
    let got: Vec<_> = points.column("cpu")?.numbers()?.iter().collect();
    assert_eq!(got, [Some(0.2), Some(0.3), Some(0.4)]);
    Ok(())
}

as_time takes At::Begin, At::Center or At::End.

asTime's at option ('begin' | 'center' | 'end') picks where on each interval the resulting Time lands.

Compared to aggregate

Same inputs (a sequence and an optional range; range goes in align's options object but is aggregate's third argument), same output key shape (Interval-keyed grid), different reduction.

Question	Operator
"What was the value at this grid point?"	align(seq, { method, sample })
"What's the rollup of every event in this bucket?"	aggregate(seq, mapping)

TypeScript

// align — one row per minute, value sampled from the source.
cpu.align(Sequence.every('1m'), { method: 'hold' });

// aggregate — one row per minute, value reduced from sources inside.
cpu.aggregate(Sequence.every('1m'), { cpu: 'avg' });

Rust

use pond_rs::{Agg, Align, Column, Reducer, Sequence, TimeSeries};

fn main() -> Result<(), pond_rs::PondError> {
    let cpu = TimeSeries::new(
        "cpu",
        vec![0, 30_000, 90_000],
        vec![Column::required("cpu", vec![0.2, 0.4, 0.6])],
    )?;
    let minute = Sequence::every("1m")?;

    // align: one row per minute, value sampled at each minute's start.
    let held = cpu.align(&minute, Align::default())?;
    let got: Vec<_> = held.column("cpu")?.numbers()?.iter().collect();
    assert_eq!(got, [Some(0.2), Some(0.4)]);

    // aggregate: one row per minute, value reduced from the rows inside.
    let avg = cpu.aggregate(&minute, &[Agg::of("cpu", Reducer::Avg)])?;
    let got: Vec<_> = avg.column("cpu")?.numbers()?.iter().collect();
    assert_eq!(got, [Some(0.30000000000000004), Some(0.6)]);
    Ok(())
}

For a chart at one-minute resolution where every grid point should have a value, align is right. For "average CPU per minute," aggregate is right. The two are complementary.

See Aggregation for the bucketing operator.

See also

• Aggregation — bucket-rollup counterpart
• Sequences — grid definitions
• Cleaning data — handle gaps left by hold or linear (e.g. early undefineds before the first source)
• Reducer reference — empty-bucket and rolling-window behaviour for every reducer (relevant for the aggregate counterpart)
